Essentially, when it comes to modifying a road car, the mods come under two categories – styling or go faster (even if that means going slower – like braking), there are one or two mods that sit between the two, but that’s the simplest way of breaking them down.
I’ve assumed that you have some mechanical know-how, and the tools to go with that, but I’m not talking about full engine rebuilds, or bare shell restoration work … simple(ish), cheap mods that you can do in your yard or garage – not a race-equipped workshop.
Let’s start with the basics.
Table of Contents
Before deciding to mod your car, you should make sure that it’s in good working order. A regular service should take care of regular issues – new sparking plugs, filters, oil, maybe some HT leads … you may as well start with what the factory intended from new. Same for the chassis – ensure that your shocks aren’t leaking, brake pads & discs are usable, tires are within safe limits.
You should also consider mileage – if you’re looking at introducing lots more power, a 150,000 mile beater is only going to wear out faster. And one final point – while you make sink some serious money in mods into your car, if you’re intending on selling it soon after, you won’t get your money back, and you may even find it harder to sell.
So your car is mechanically OK, you’re ready to get busy …
And that’s a great place to start – a performance air filter. There are a number of well-known brands producing them, perhaps the most popular is K&N, and although they’re at the higher end of the price range, they can be cleaned and reused time and again.
Fitting a typical air filter usually requires little to no tools, maybe the odd screw or Torx driver – unclip the filter housing and swap the filters over, it really is that simple. You can expect gains of anywhere between 3 – 5 horsepower, although I’ve seen some anomalies where the vehicle finds 10+ bhp.
Of course, some cars have their filters buried under the front fender, behind the headlight or what have you. If you’re not sure of the location, either a quick internet search or call to a dealer will help.
This is slightly tricky – performance oils can be a good thing, but they can also ruin your engine. If your engine has run on mineral or semi-synthetic all of it’s life, and is high mileage, then doing an oil change for something like Mobil 1 will ‘glaze’ the bores – meaning that the oil will just work its way passed the piston rings and burn in the cylinder, leaving you smoking like a coal fire.
For what it’s worth, unless your working with a fresh engine, I’d stick to the manufacturers stated preference, although it may be possible to find a performance variant of that.
The cooler you can get air going in to the motor, the more power you can make. Depending on the car (mainly the popularity with aftermarket tuners), it may be possible to buy an off-the-shelf solution to cooling the air – something that moves the intake box away from the heat of the engine, or an insulation kit to reflect the heat.
Getting slightly more technical, it’s possible to buy thermal insulation plates that fit between the engine plenum and intake manifold, this does of course require the very top of the engine to be stripped off. Typical gains are around 5 hp.
If there’s no regular kit, or you can’t find a thermal spacer, then try wrapping the intake box with a reflective insulating material.
Gadgets, Gizmos, Gimmicks and Trash
In my thirty or so years in automotive engineering, I’ve seen everything from a ‘fan’ that fits inside the intake pipe, right through to chemistry-defying additives and electronic thingamejigs that are sold under the pretense of either improving fuel economy, or improving power.
It’s true that manufacturers need to tune their fuel-injection system to cater for a hundred different markets or events, that they need to err on the side of caution rather than horsepower, and that today’s cars in particular are super tight on emissions. But … to make a gain from that artificially imposed restriction takes more than adding an extra resistor to the air-temperature sender, or giving the air a bit more ‘swirl’ – it can only really be done with changing the tuned state of the car, most commonly done through agents that can remap the engine, or by purchasing a performance ECU (Electronic Control Unit) that can be fitted at home.
In days gone by, the exhaust system was one of the easiest upgrades to make to any car – more often than not, the manifold would be a heavy, cast-iron lump that roughly followed an exhaust shape, the main pipe would be made of heavier-gauge steel and the back box was just a mess of design – so long as it fitted where it needed to.
Today … things are different. Thanks to the ever increasing drive for fuel-economy, while still keeping a decent level of power, the big brands spend more on exhaust design than ever before – even the smallest of compacts typically has a well-designed, individual branched manifold, usually made from stainless steel.
Not much improvement to be had there – yes you can upgrade, you may find a little extra power, but it’s expensive.
With that said, if you look at the other end, things are generally better. Car makers want their standard cars to be an old plain Jane, with nothing standing out to make them lose sales (it’s a super competitive market), which means they’re quiet – plenty of baffling, max noise reduction, max strangulation.
Replacing a standard exhaust for something with a little more zip is relatively straightforward, even more so if you’re just losing the box at the back. Better still, depending on state regulations, it’s possible to fit a ‘de-cat’ or cat-bypass pipe which could free up quite a few ponies – anywhere between 5 – 10%.
We’ve dealt with some minor engine upgrades, which if done correctly could see quite an improvement in power over a standard car. My thoughts would now turn to transferring that power to the road, or coping with it … chassis, suspension and handling mods.
Most standard brakes fitted to cars will cope with quite a bit of extra power – especially with a competent driver that’s looking forward rather than just in front of the car, so a brake upgrade isn’t necessarily crucial, but if you’re looking for track use, then it’s a must.
You can have all the power in the world, but if you can’t slow your car enough for corners then it’s to no advantage whatsoever. There are three components to consider when upgrading your brakes.
A disc upgrade can be many things – larger diameter, thicker, vented, grooved … perhaps even all four. Larger discs apply more force to actually slowing the car down, usually in conjunction with a different caliper (which in itself can be an upgrade). The grooves and vents help to keep the discs cooler for longer, meaning that brake fade shouldn’t be quite so prevalent.
If you’re intending on swapping the calipers, you may find that they have bigger pistons, or even just more of them – either way, it results in a higher clamping force. A word of caution though – increasing the diameter of your discs may mean a change in wheel size to accommodate the bigger discs. (more on wheels shortly).
Standard road pads are designed to work in all conditions, come rain, snow or ‘shine, they’re also made to offer greater comfort levels – aka, reduced noise. Fitting harder pads could result in better braking, often working at higher temperatures and be more abrasive, but that does have a cost. Being more abrasive means that they’ll be harder on the disc, and there’s a good chance that they’ll be noisy – perhaps even ‘ringing’ or squealing until fully-warmed up.
This is an easy and relatively cheap upgrade, it’s only really worth doing if you’re intending on doing some hard track-driving. If you’ve ever noticed your brakes fading under hard use, the chances are that it’s down to the fluid boiling, which means less pressure exerted on the pads.
A higher specification brake fluid will stop that happening, but … the nature of brake fluid is ‘hygroscopic’, meaning that it takes in moisture from the atmosphere, a higher-spec fluid will need replacing on a regular basis to stop that happening.
I briefly mentioned wheels when talking about brakes, but even if your upgraded brakes fit inside a standard wheel, there’s a good argument for changing them.
First up, and perhaps the most important – choosing the right aftermarket wheel will of course significantly change the look of the car, but more importantly, your goal is to lose weight – wheels, tires and brakes are what’s called ‘unsprung weight’. The lighter you can get it (within reason), the better your car will handle, stop, turn and brake – it’s a win-win situation.
Secondly, changing the wheel size could give you a better choice of tire – higher speed rating, better grip, seasonal … it’s just another small modification that you can make that will change the nature of the car.
A decent set of tires can quite literally transform a car. I’ve driven cars back-to-back where the only difference has been standard tires vs road-legal but sticky tires and you could almost be fooled in to thinking it’s a different car. The transformation was vast.
For a number of people, investing in some grippy tires is a no-brainer, while others will always find an excuse not to. After all, tires aren’t cheap and they’ll only wear out – my last hyperbike was fitted with a rear tire that would last for around 700-miles of hard riding.
The choice really comes down to just how far you want to go with the mods. If you’re looking for ultimate performance, then sticky tires are a must.

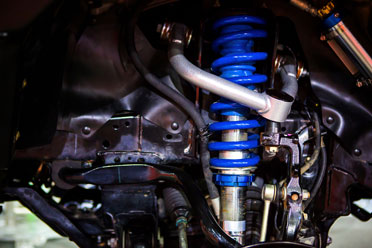

Adjustable suspension is an absolute must if you’re serious about performance mods, that doesn’t necessarily mean a full-on, super brand like Ohlins. Many of the lower end shocks perform well, at least better than standard, and of course they have the added bonus of being adjustable, both in terms of how stiff they are (bump & rebound) and ride height.
There are other toys that can be fitted also – things like a modified strut-brace for example, or stiffer anti-roll bars … this really will depend on the car though.
My choice would be to go for some mid-level shock absorbers and have a full (and professional) geometry setup to maximize the benefit. I wouldn’t personally take up too much time with corner-weighting and the like, unless you really are doing a lot of track driving, with a known setup and weight.
The final tool in the armory of the home modifier is weight loss (or at least when it comes to performance). There is no hard and fast rules, no formula (that XX weight is equal to XX hp), but it’s relatively straightforward to work out how much weight-loss you’d need for the equivalent horsepower.
Imagine a car weighing 3,000 lb, with 300 hp – this means it makes 1 hp to 10 lb in weight. What if you lost 100 lb of weight? 2,900 lb / 300 hp = 1 hp to 9.66 lb of weight (going in the right direction), so without losing that 100 lb in weight, we’d need to understand how much extra power we’d need to get a similar figure, in this case, it’s around 10 hp:
3,000 lb / 310 hp = 1 hp to 9.67 lb, so we can conclude that losing 100 lbs in weight would make it feel like a 10 hp increase in power.
Vehicle weight / horsepower = lbs per hp

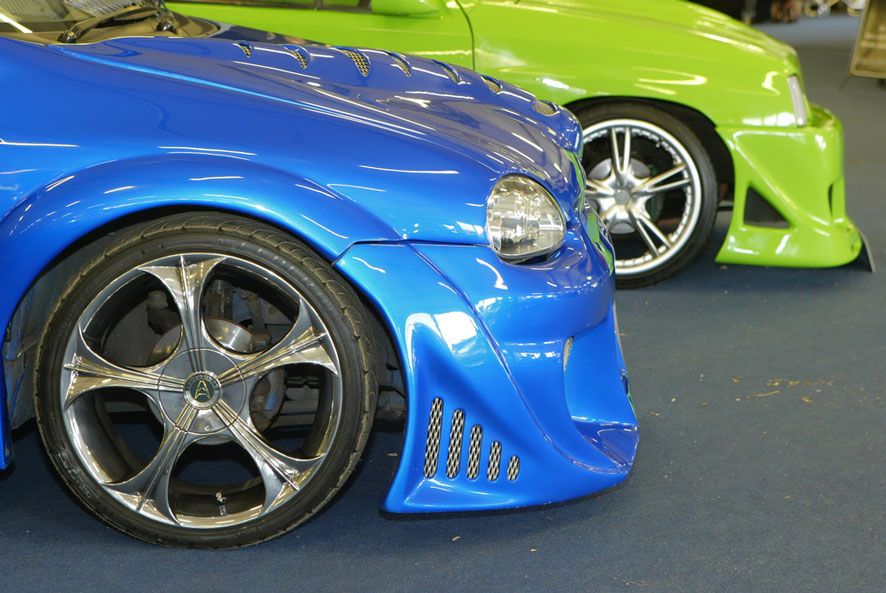

Styling it Out
We’ve dealt with pretty much all of the simple mechanical mods you can do, the rest is just styling mainly. I perhaps may be of a … minority view … I’m not a fan of adding rear-wings or as many (incorrectly) call them, a spoiler for ‘added downforce’, here’s why:
At the type of speeds you’ll be driving on the road, you don’t any extra downforce, nor will they really create much downforce, … and it’s a big but … they’ll ruin your fuel economy. Also, unless you do have a set of adjustable shocks on the car, which can take advantage of the extra downforce, then all you’re doing is ruining the handling.
If you’re looking for performance, then it’s without the wing, but if you’re looking for the ‘Too fast, too furious’ look, then knock your socks off.
For everything else styling-wise, it’s entirely down to personal preference. You want a list of ‘sponsors’ on the rear of the fender, go for it. Tints? Why not? The single blade windshield wiper in the middle of the screen, ala every enclosed racecar, yup.
For me, modifying a car is about making it go faster, stop better and get round turns like no other. I totally get that there’s a huge market that’s dedicated to making a car look like a racecar, even if it’s completely standard underneath – whatever floats your boat.
